Reactive Messaging with RabbitMQ and WildFly

In the third article of this series, we will learn how to configure RabbitMQ as broker for a Reactive Application running on WildFly. We will show which are the changes we need to apply both on Rabbit MQ and on the Reactive Application to make them work together smoothly.

Pre-requisites:

Configure WildFly to use Reactive Messaging extensions. See this article for more details: Reactive Messaging with AMQP and WildFly
Basic Knowledge of Rabbit MQ and Docker. You can check this article for a quick introduction: RabbitMQ with Docker: A Comprehensive Guide

Configuring Rabbit MQ to run AMQP 1.0

RabbitMQ, out of the box, supports the AMQP 0-9-1 Protocol. This is quite different from AMQP 1.0 although it is possible to install a plugin to have AMQP 1.0 support. The simplest way to do that, is via Docker-compose adding as volume the enabled_plugins with the list of plugins.

Firstly, edit the following docker-compose.yml:

version: '3.8'

services:
  rabbit:
    image: rabbitmq:3.12-management-alpine
    labels:
      - smallrye-dev-service-amqp=amqp
    ports:
      # AMQP protocol port
      - '5672:5672'
      # HTTP management UI
      - '15672:15672'
    environment:
      - RABBITMQ_DEFAULT_USER=guest
      - RABBITMQ_DEFAULT_PASS=guest
    volumes:
      - './enabled_plugins:/etc/rabbitmq/enabled_plugins:ro'

Then, add the enabled_plugins file in the same directory with this content:

[rabbitmq_management,rabbitmq_amqp1_0].

This will add the rabbitmq_management and rabbitmq_amqp1_0 plugins to the stack of Rabbit MQ Plugins.

Finally, start the Container of RabbitMQ with:

docker-compose up

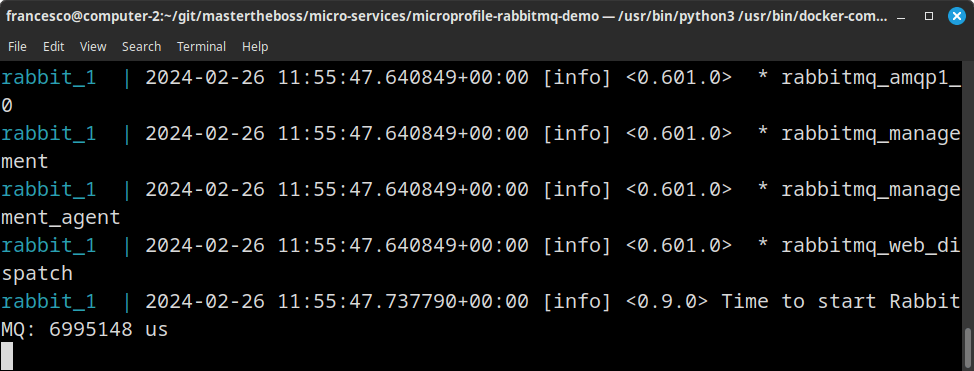

Make sure that RabbitMQ is up and running before moving to the next step:

Configuring the Reactive Application

There are no code changes in our Reactive application except for the configuration. Modify the microprofile-config.properties as follows:

amqp-host=localhost
amqp-port=5672
amqp-username=guest
amqp-password=guest

mp.messaging.outgoing.to-amq.connector=smallrye-amqp
mp.messaging.outgoing.to-amq.address=queueDemo
mp.messaging.outgoing.to-amq.durable=false

mp.messaging.incoming.from-amq.connector=smallrye-amqp
mp.messaging.incoming.from-amq.address=queueDemo
mp.messaging.incoming.from-amq.durable=false

mp.messaging.outgoing.to-amq.use-anonymous-sender=false

As you can see, the main changes we neeed to apply are:

Set Messaging Channels “durable” attribute to false

Set the destination address (anonymous sender are not supported) to queueDemo

Then, deploy the updated application on WildFLy:

mvn install wildfly:deploy

You should be able to see on the Server Logs messages which are sent and consumed:

13:03:28,746 INFO  [stdout] (pool-15-thread-1) Got Weather : WeatherData[city=New York, temperature=16]
13:03:28,746 INFO  [stdout] (pool-15-thread-1) Sent WeatherData to Remote System : WeatherData[city=New York, temperature=16]
13:03:28,749 INFO  [stdout] (vert.x-eventloop-thread-0) Consumed WeatherData from Remote System: {"city":"New York","temperature":16}
13:03:30,747 INFO  [stdout] (pool-15-thread-1) Got Weather : WeatherData[city=Sydney, temperature=15]
13:03:32,748 INFO  [stdout] (pool-15-thread-1) Got Weather : WeatherData[city=Sydney, temperature=16]
13:03:34,749 INFO  [stdout] (pool-15-thread-1) Got Weather : WeatherData[city=Paris, temperature=12]

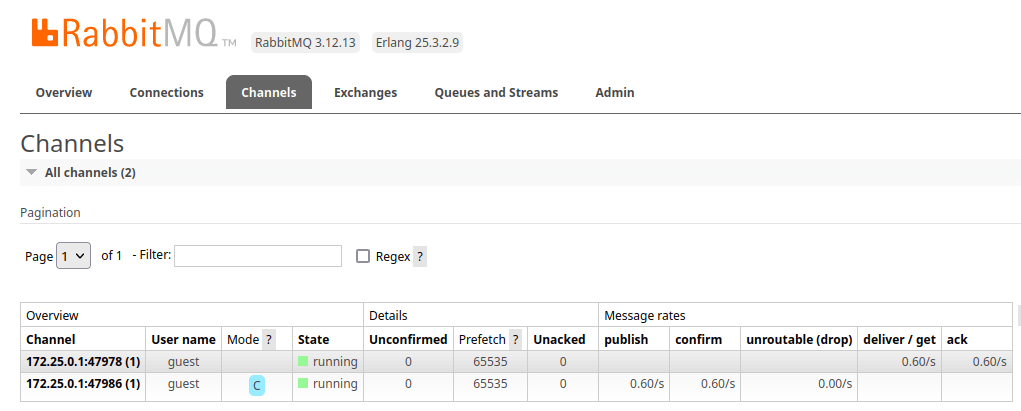

You can also access RabbitMQ Console at localhost: 15672 to check statistics about the Topic:

wildfly with rabbitmq step-by-step guide

Conclusion

This article was a walkthough on how to configure WildFly 31 to send Reactive Messages to RabbitMQ. We showed how to install AMQP 1.0 plugin on rabbitMQ and the changes in our application to target the broker for messaging.

Source code: https://github.com/fmarchioni/mastertheboss/tree/master/micro-services/microprofile-rabbitmq-demo
